Lab 2 - API Security and API Producer/Consumer Relationship on Apigee Edge

Duration : 20 mins

Persona : API Team

Use case

You have an API that you want to secure and expose for consumption by different Apps (API consumers). In addition to setting up authorized access to the API, you also want to be able to identify and control which App is making calls to the API so you can customize API behavior based on the the caller, or gather data on consumption patterns by differnt Apps and view that data through Analytics dashboards.

How can Apigee Edge help?

API Proxy - API Product - App Relationship

On Apigee Edge, in order to secure an API Proxy and control access by consumers, we need to first understand the relationship between API Proxies, API Products, and Apps.

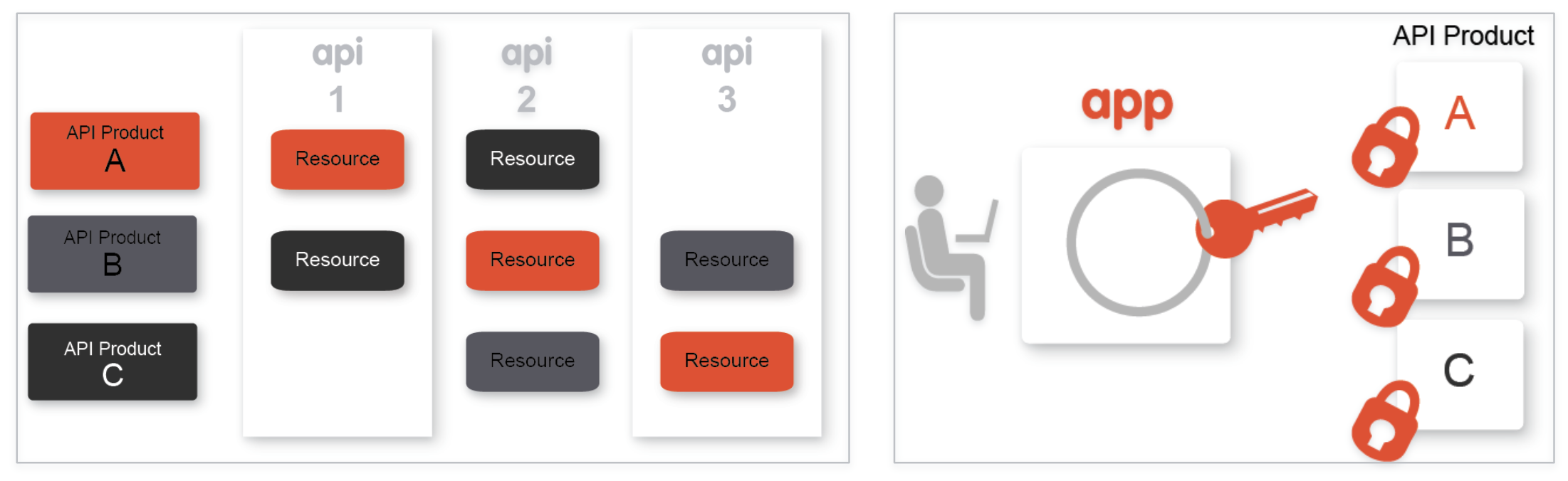

While the API Proxy allows you to expose the API endpoint according to API design specification, it also serves to decouple the API backend (target service) from the front end (client Apps), and in turn API production from consumption. This is accomplished by creating ‘API Products’ which are configurations that define how an API can be consumed. The API Product configuration may contain metadata that defines rules for consumption of the API through the particular API Product. These rules may include allowed consumption quota (Eg. 100 API calls per minute), visibility (Public vs Private vs Internal), API resource restrictions (Eg. Only /products resource URL may be called, but not /products/{product ID}), which API deployment environment the caller is allowed to access (Eg. test, prod), etc. Once the API Products are created, client Apps can then subscribe to them. On subscription, Apigee automatically generates and provisions an API Key/Secret pair for the App. These credentials can then be used to call the API endpoint with authentication and authorization, from within App code.

image alt text

API Proxy Configuration

While Apigee provides multiple ways of securing an API and authorizing API calls - including API Keys, OAuth, JWT Tokens, and SAML - this lab will focus on using simple API Key verification to secure an API.

Within the API Proxy, the Verify API Key Policy can be used to authenticate and authorize incoming API calls, based on API Key verification. As a result of successful API Key verification, the Verify API Key Policy also populates the API Proxy runtime context with details about the App making the call, the App developer, the API product associated with the call, and so on. This context can then be used to parameterize other policies applied, in order to affect API behavior such as quota enforcement or routing based on the client App. The data can also be extracted and used to gain business insights through Apigee Analytics.

In this lab, you will..

Pre-requisites

For this lab, you will need an API proxy that is not currently secured. If you do not have an API proxy available for this lab, revisit lab 1 “API Design : Create a Reverse Proxy from OpenAPI Spec” and then return here to complete these steps.

Instructions

Choose and test the API Proxy to secure

  1. Log into the Apigee Edge Management UI at https://login.apigee.com. Navigate to Develop → API Proxies, and select the API Proxy (labeled {your_initials}_Hipster-Products-API) that you created in Lab 1.

image alt text

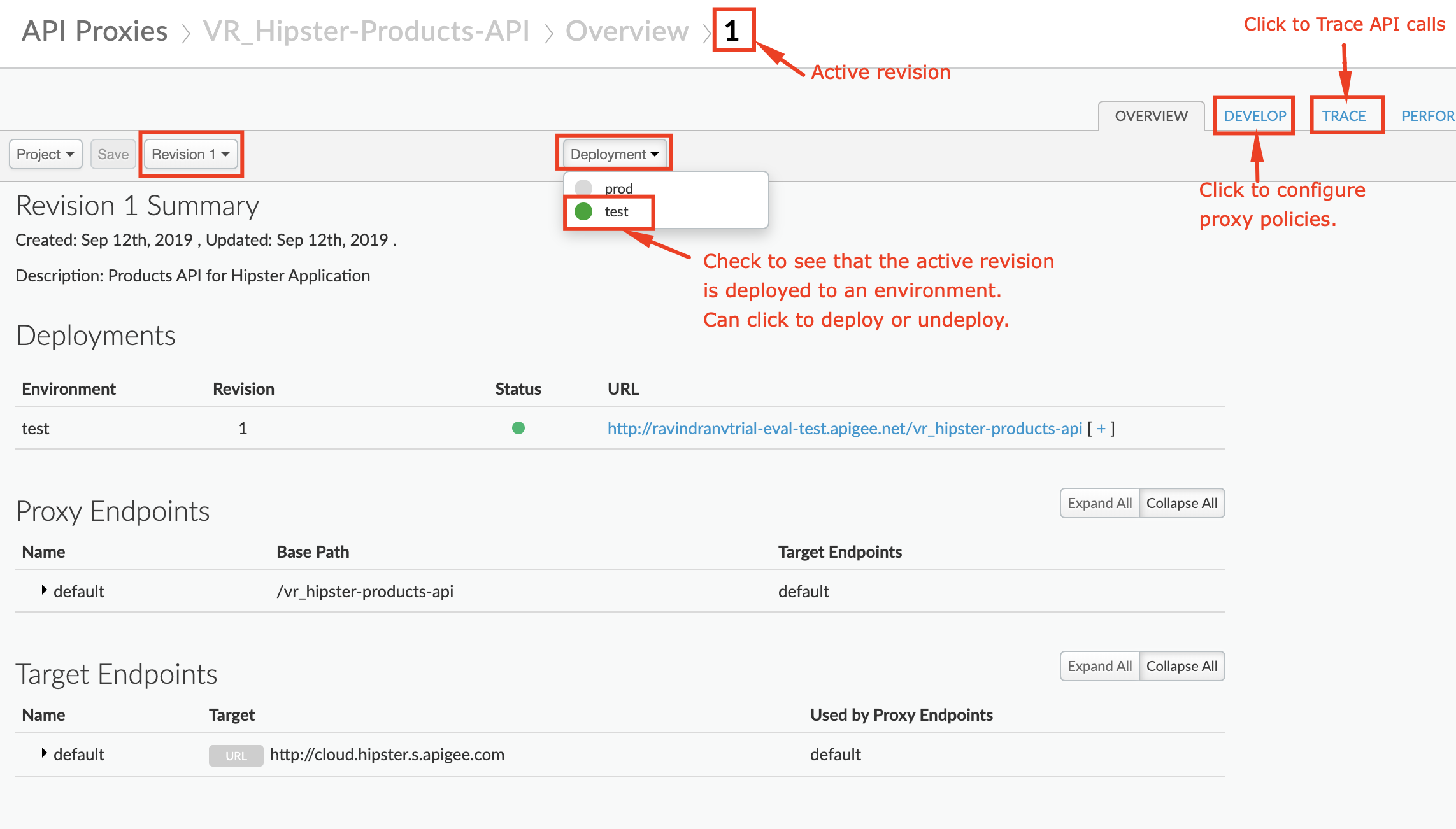

  1. Verify that the API proxy is deployed to an environment from the Overview page. Environment(s) to which the selected revision of the API proxy is deployed will be indicated by a green circle. If it is not deployed, click an environment from the “Deployment” pull-down to deploy the API proxy to that environment.

image alt text

  1. Verify that you can successfully make calls using the built-in trace tool.

image alt text

Add a Verify API Key Policy

  1. To get to the proxy editor, click the “DEVELOP” tab next to the “TRACE” tab, or Navigate to Develop > API Proxies in the side menu, and open your API proxy. Click the Develop tab (in the upper right area of the page) to see the flow editor (you may have to move the panes to see the full request and response flow lines)

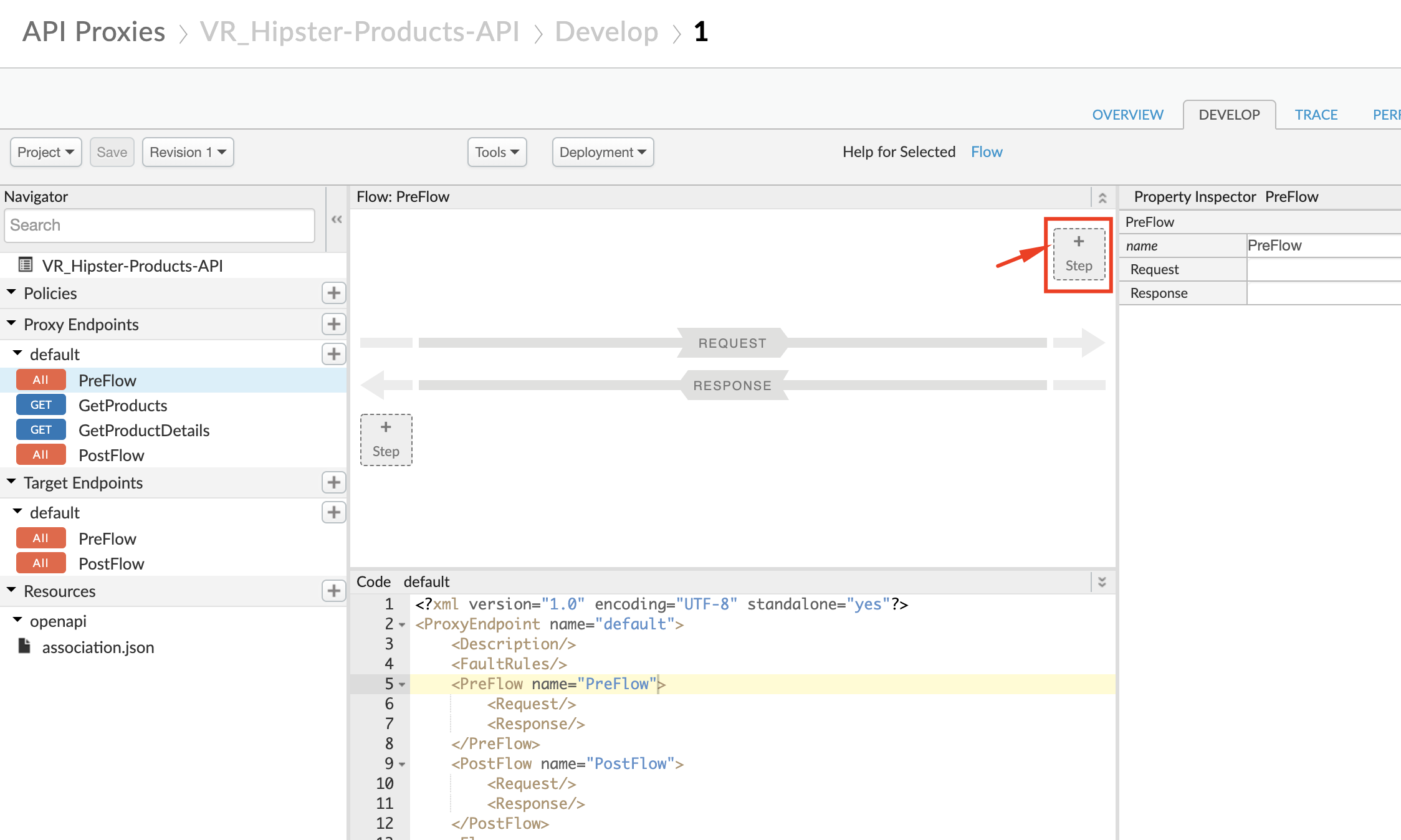

  2. Click +Step on the request flow.

image alt text

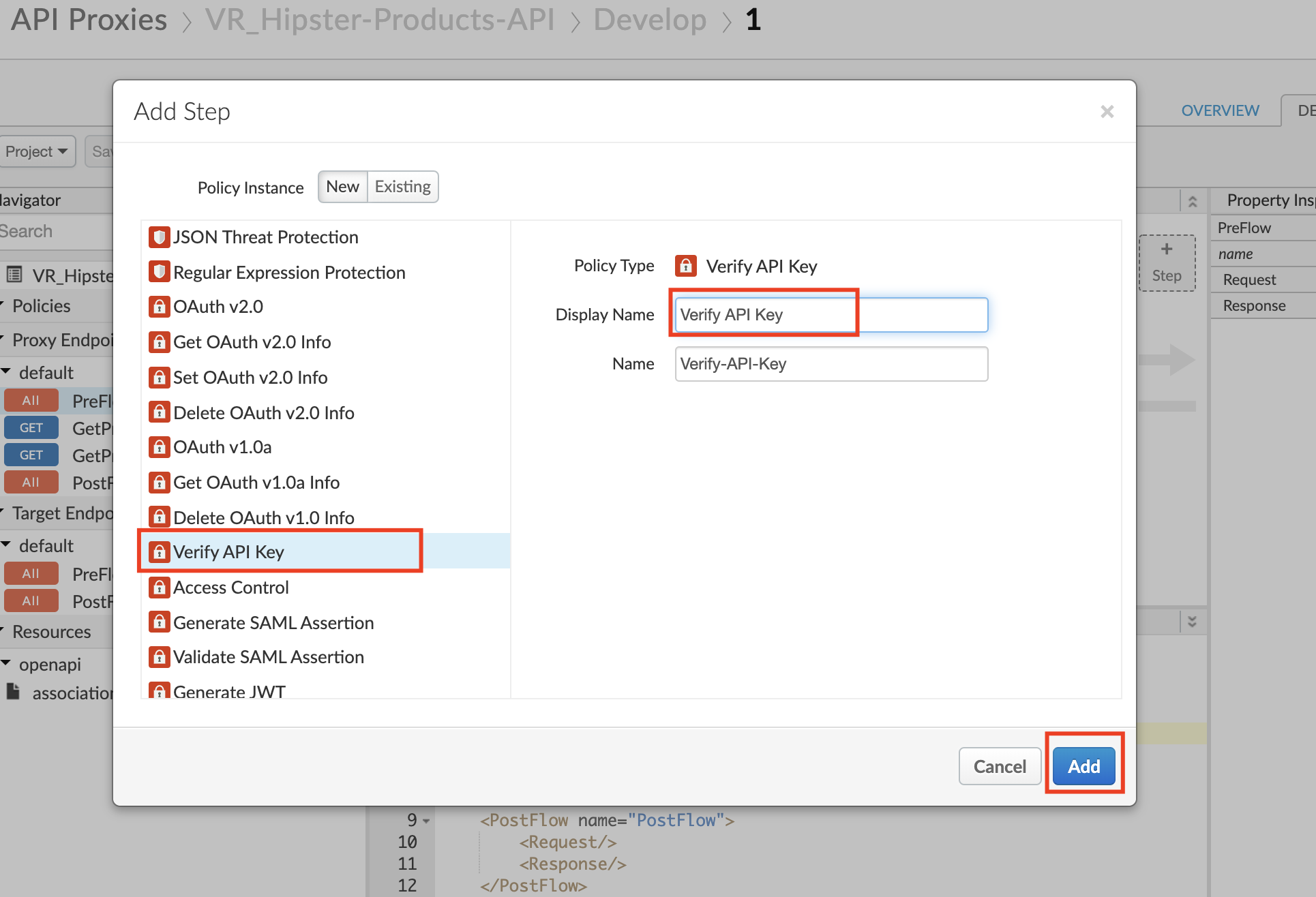

  1. Select Verify API Key policy from the Security section of the list. And provide the following values:
    • Display Name: Verify API Key
    • Name: Verify-API-Key

Add

image alt text

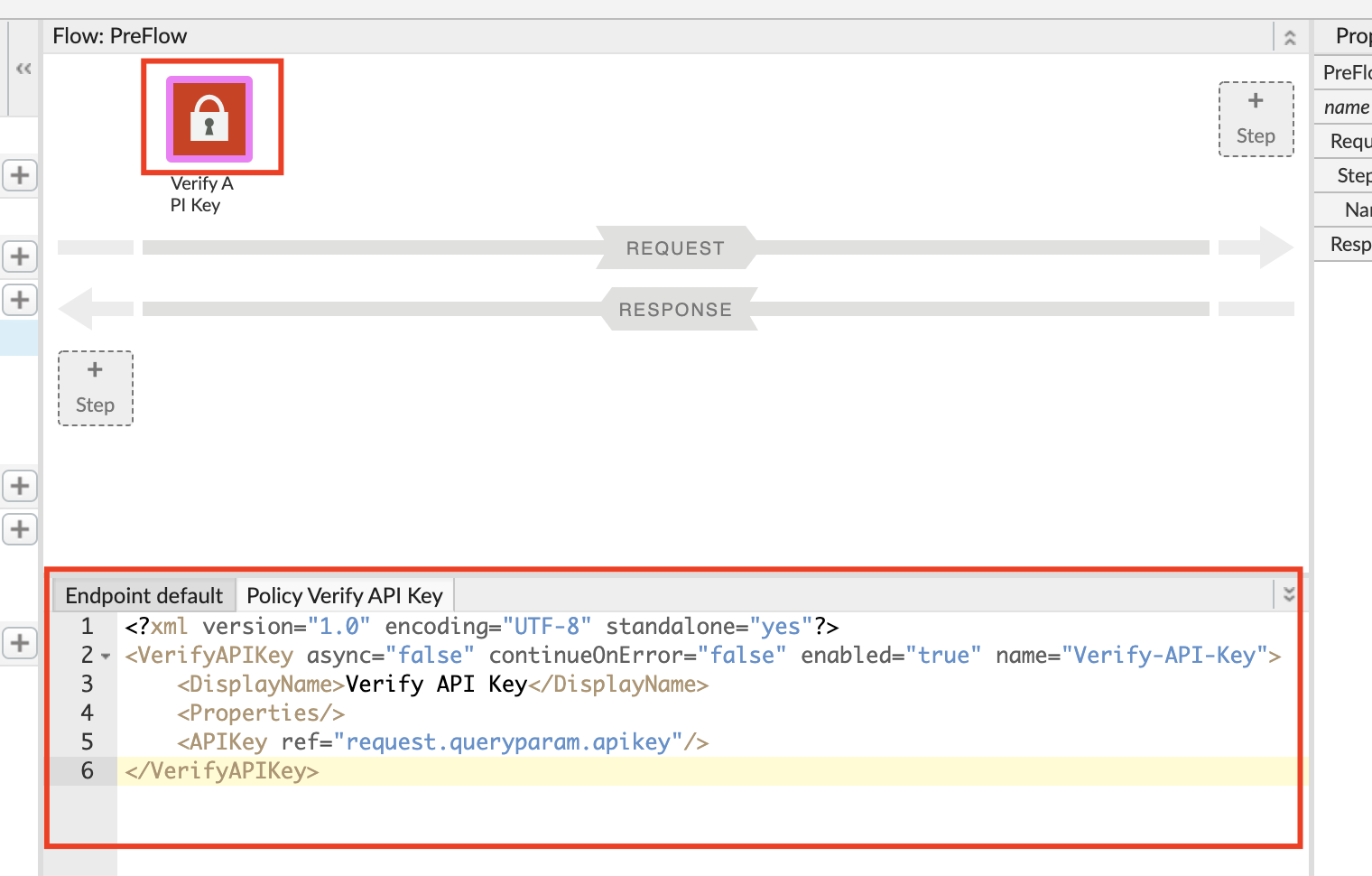

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<VerifyAPIKey async="false" continueOnError="false" enabled="true" name="Verify-API-Key">
    <DisplayName>Verify API Key</DisplayName>
    <Properties/>
    <APIKey ref="request.queryparam.apikey"/>
</VerifyAPIKey>

image alt text

  1. Click the Trace tab near the top of the window and click Start Trace Session to begin a trace session.

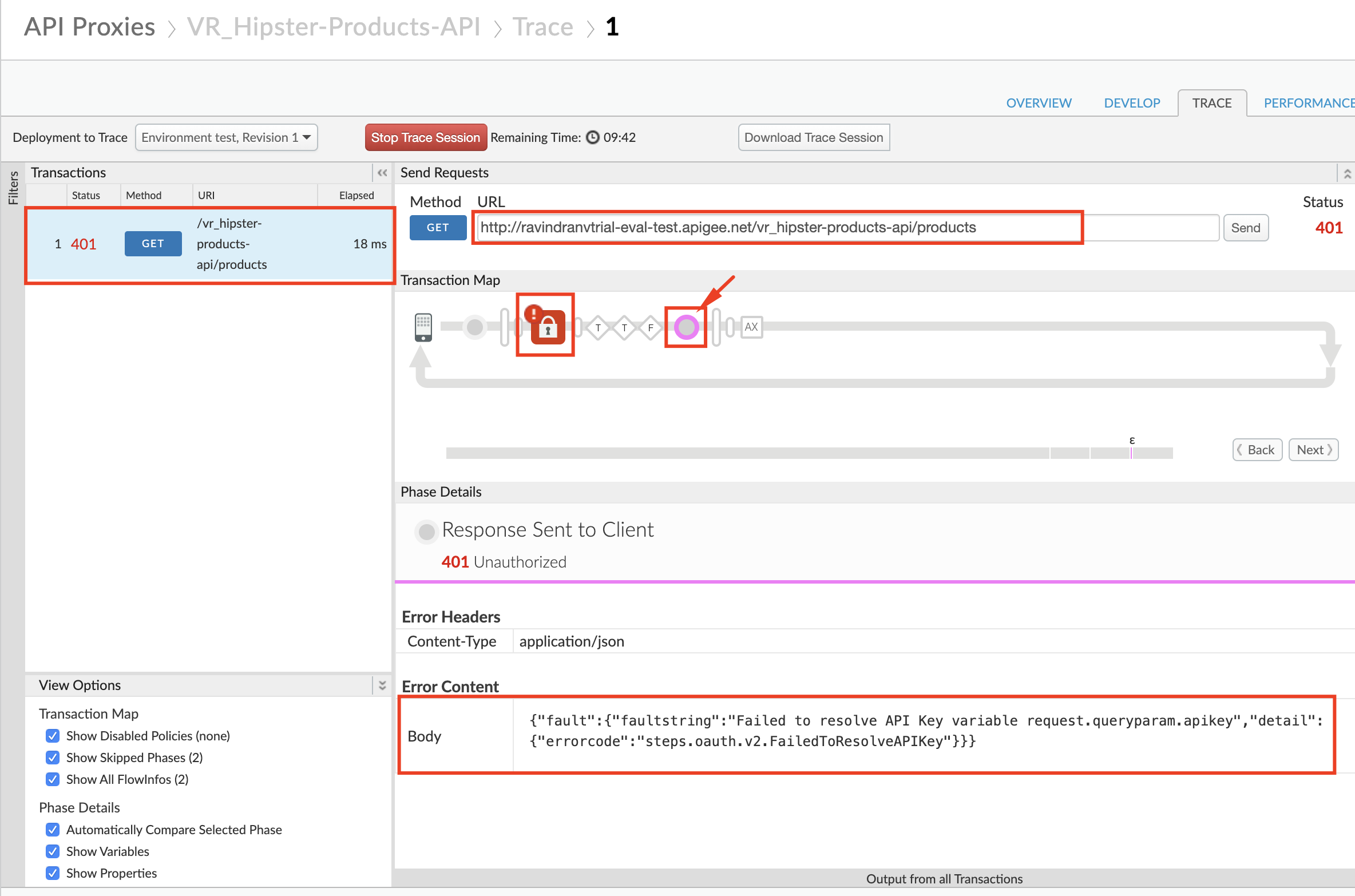

image alt text

Create API Product

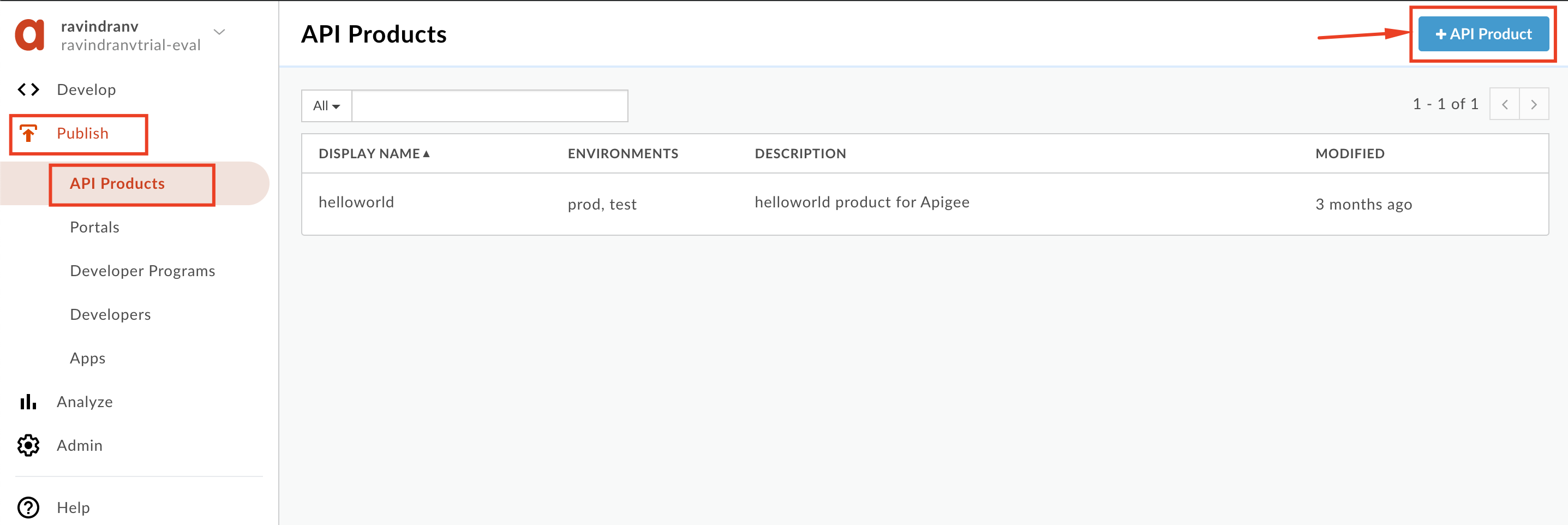

  1. Select Publish → API Products from the side navigation menu, and click the +API Product button.

image alt text

  1. Populate the following fields

Note: Replace with your initials, so as to not accidentally modify other developers’ work. Eg. API product ‘Name = xx_Hipster-Products-API-Product’.

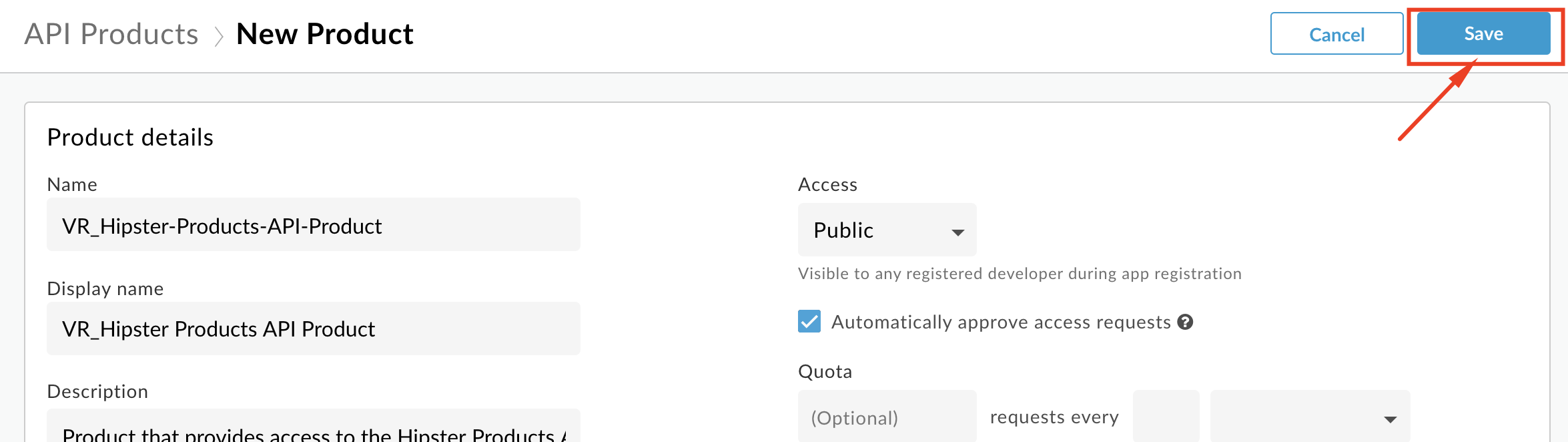

  1. Save the API Product. image alt text

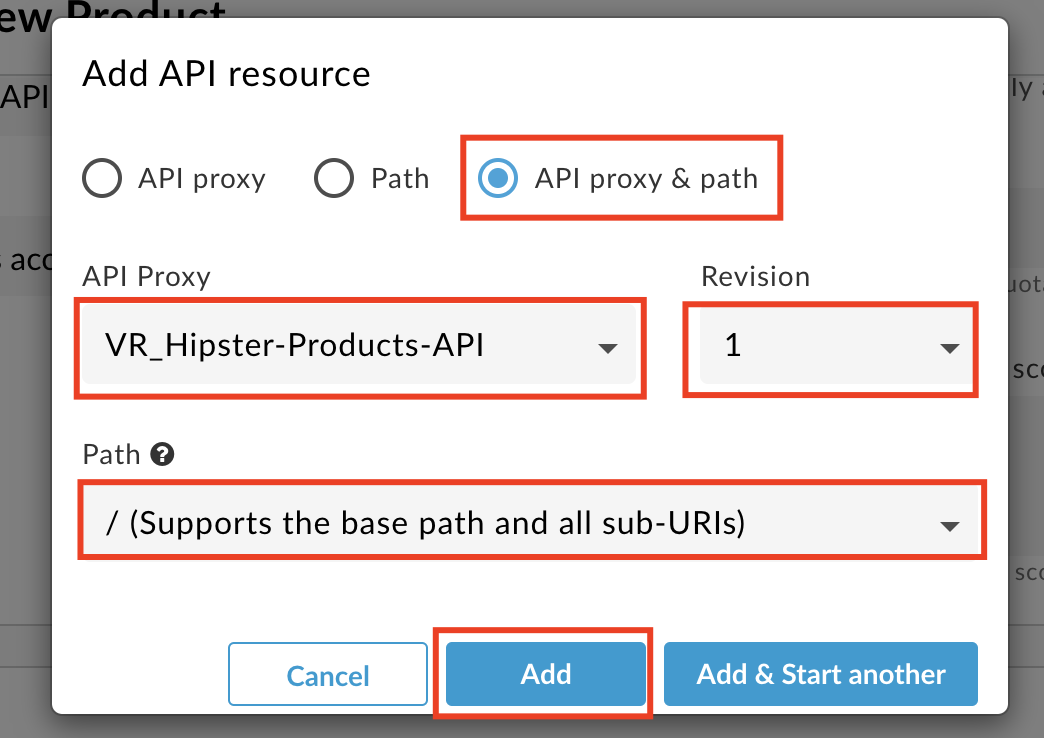

Note: We are adding the entire API Proxy to the API Product. We can just as easily select one or more operations from one or more API proxies and bundle them together in an API Product.

Manually register App from Management UI & generate API Key

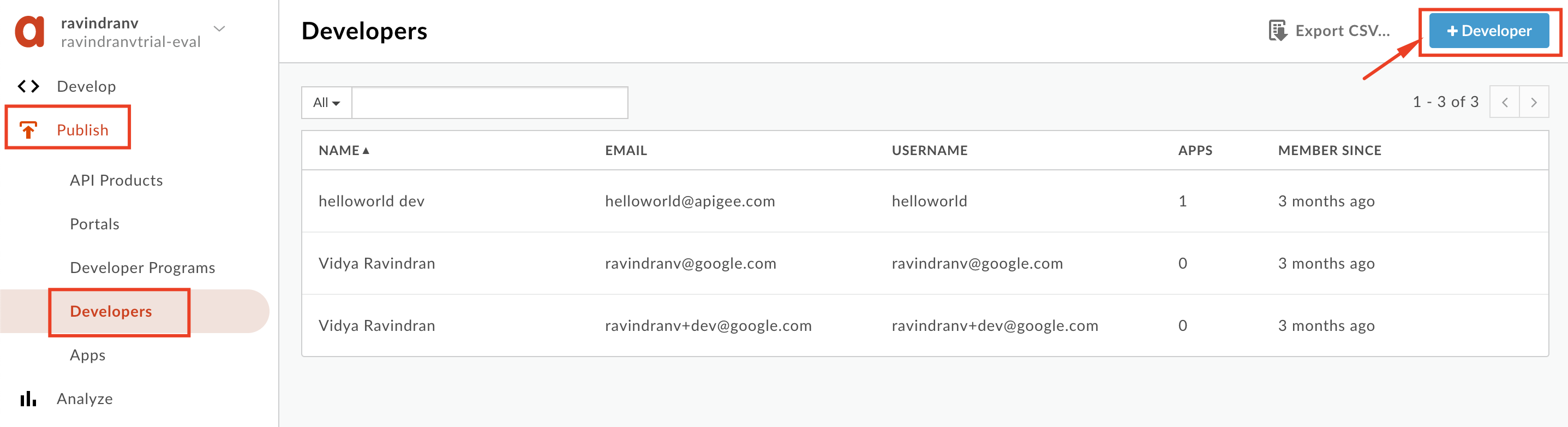

  1. Select Publish → Developers from the side navigation menu, and click the +Developer button.

image alt text

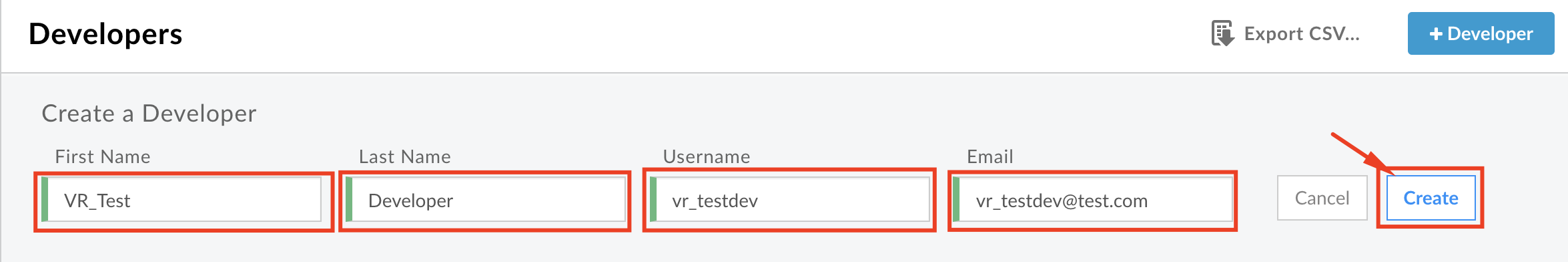

  1. Populate the following details:

    • First Name: _Test

    • Last Name: Developer

    • Username: _testdev

    • Email: _testdev@test.com

  2. Click Create

image alt text

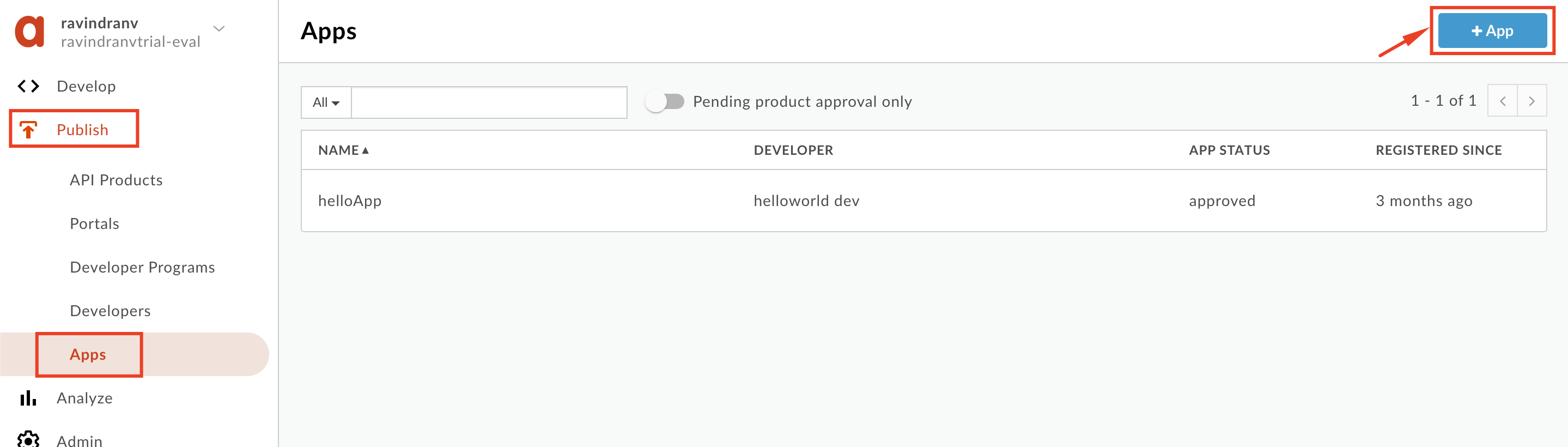

  1. Select Publish → Apps from the side navigation menu, and click the +App button.

image alt text

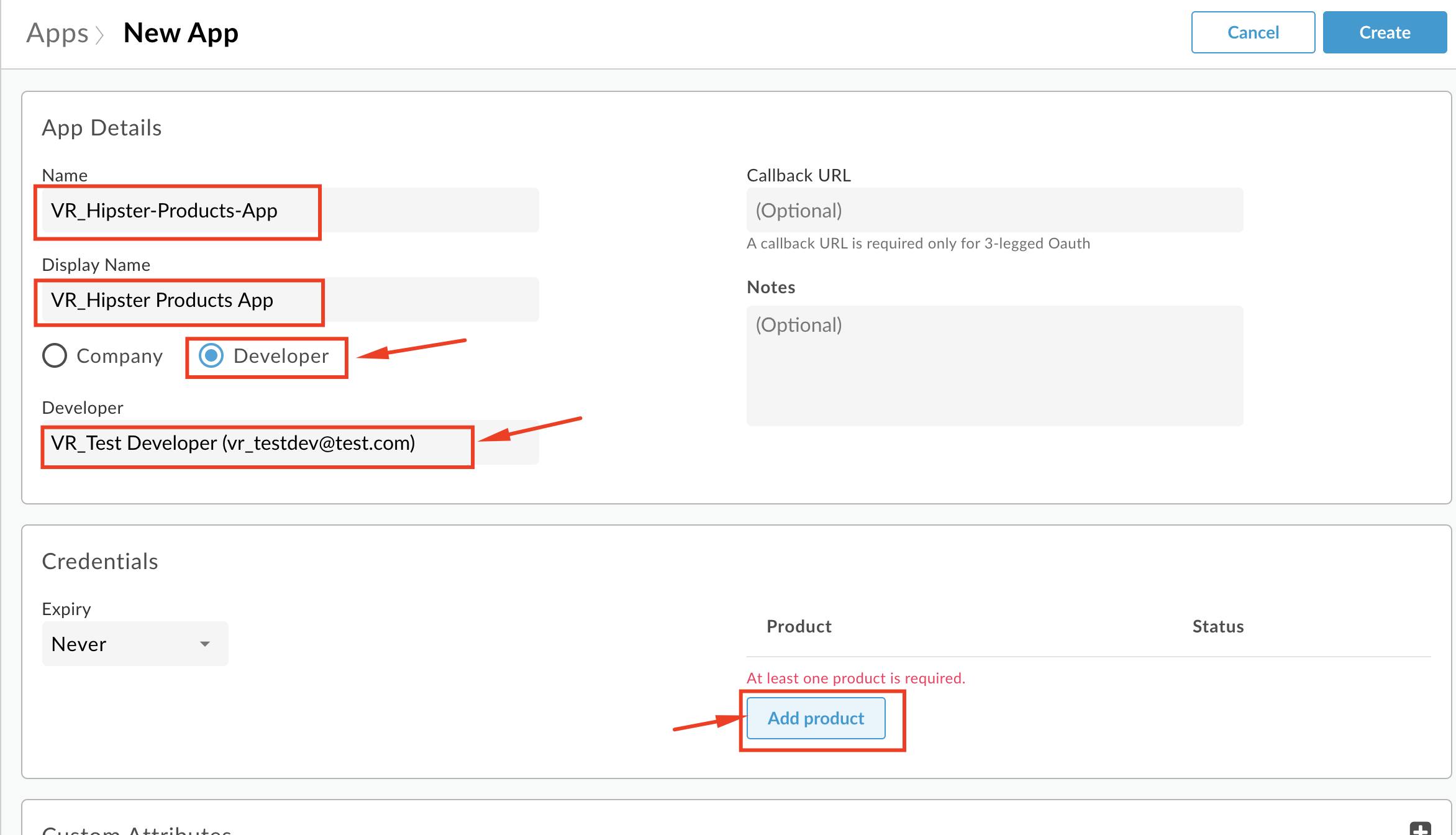

  1. Populate the following details:

    • Name: _Hipster-Products-App

    • Disaplay Name: _Hipster Products App

    • Select the Developer radial option.

    • Select the developer you previously created.

    • Click the Add Product button.

    image alt text

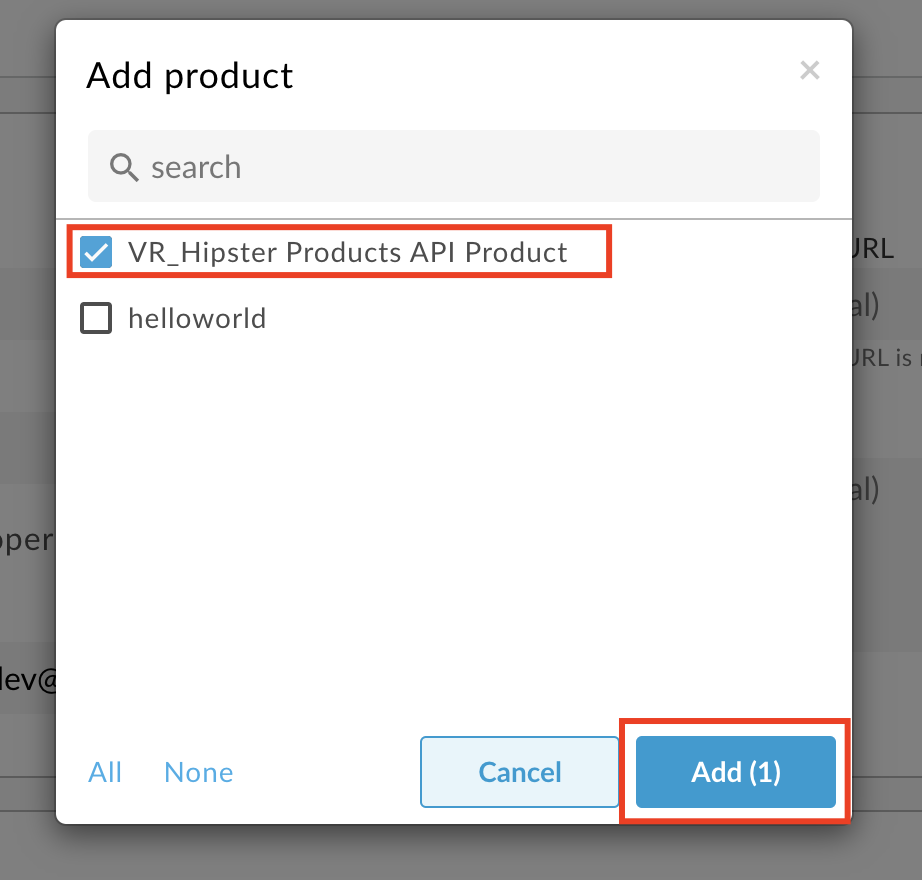

    • Select the API Product you previously created, and click Add.

    image alt text

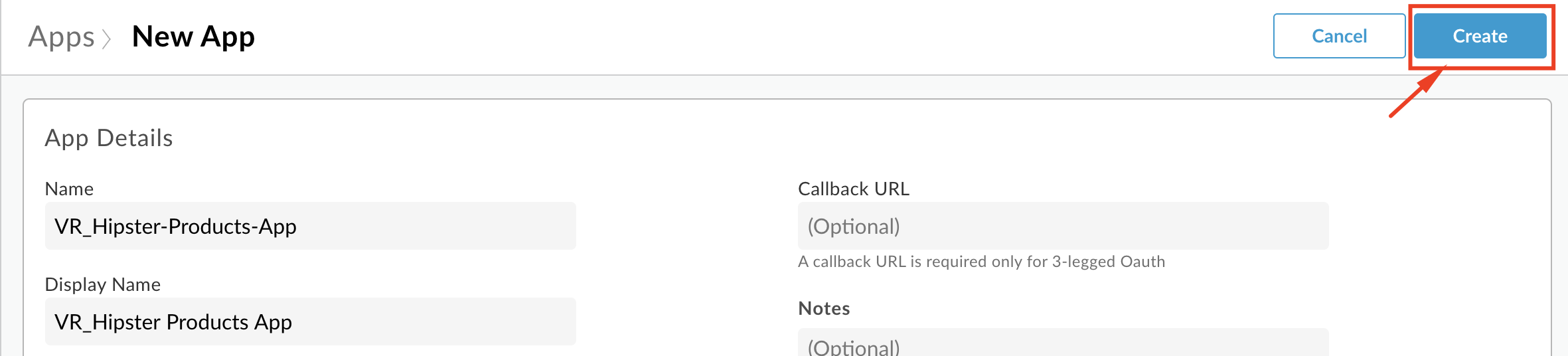

  2. Click the Create button to save.

    image alt text

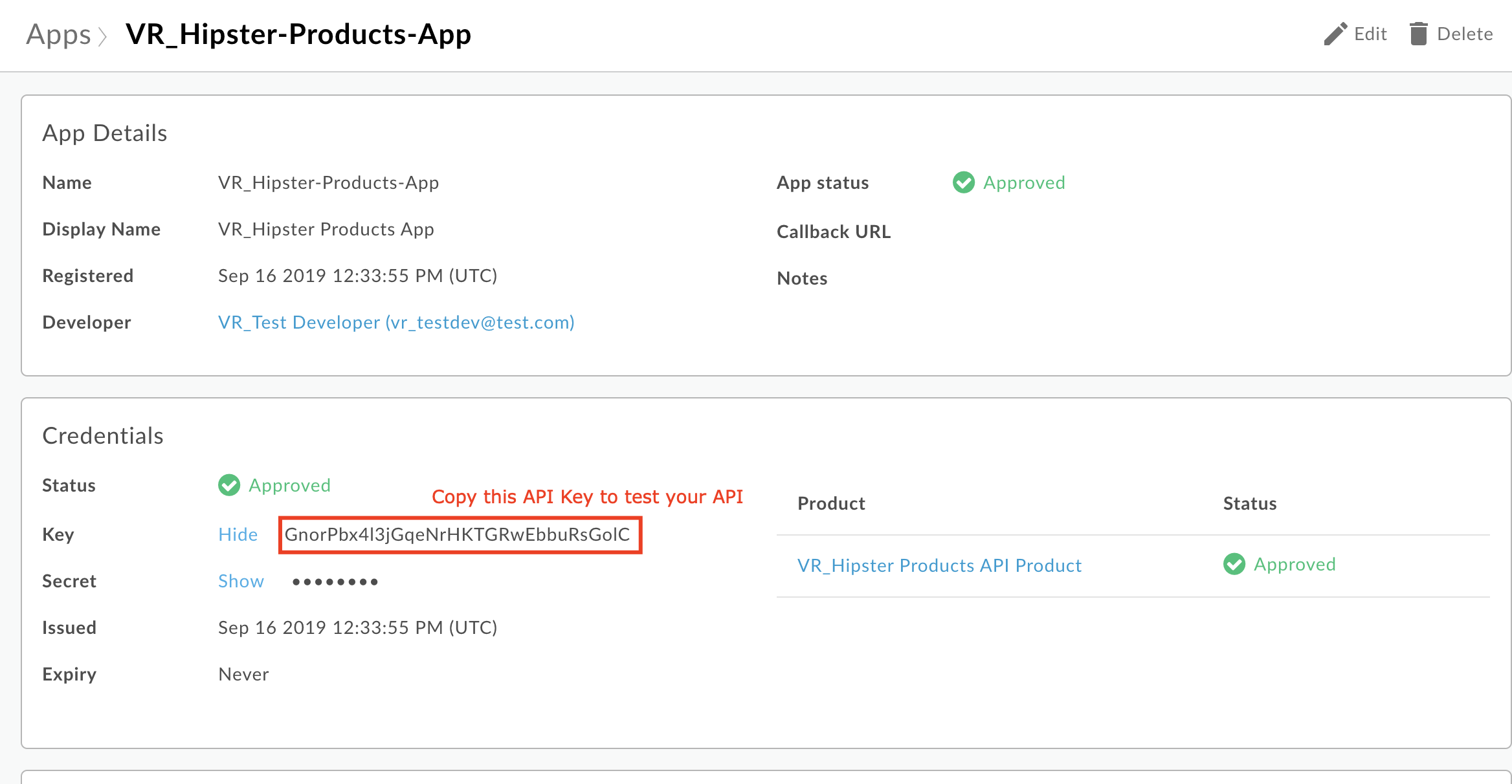

  3. Once created, you will then see that Apigee has generated an API Key and Secret pair for the App. Click on the ‘Show’ link next to the Key, and copy this API Key.

image alt text

You can now use this API Key to make a valid API request to your API Proxy.

Test your API with a valid API Key

  1. Navigate to Develop > API Proxies in the side menu, and open your API proxy. Click the Trace tab near the top of the window and click Start Trace Session to begin a trace session.

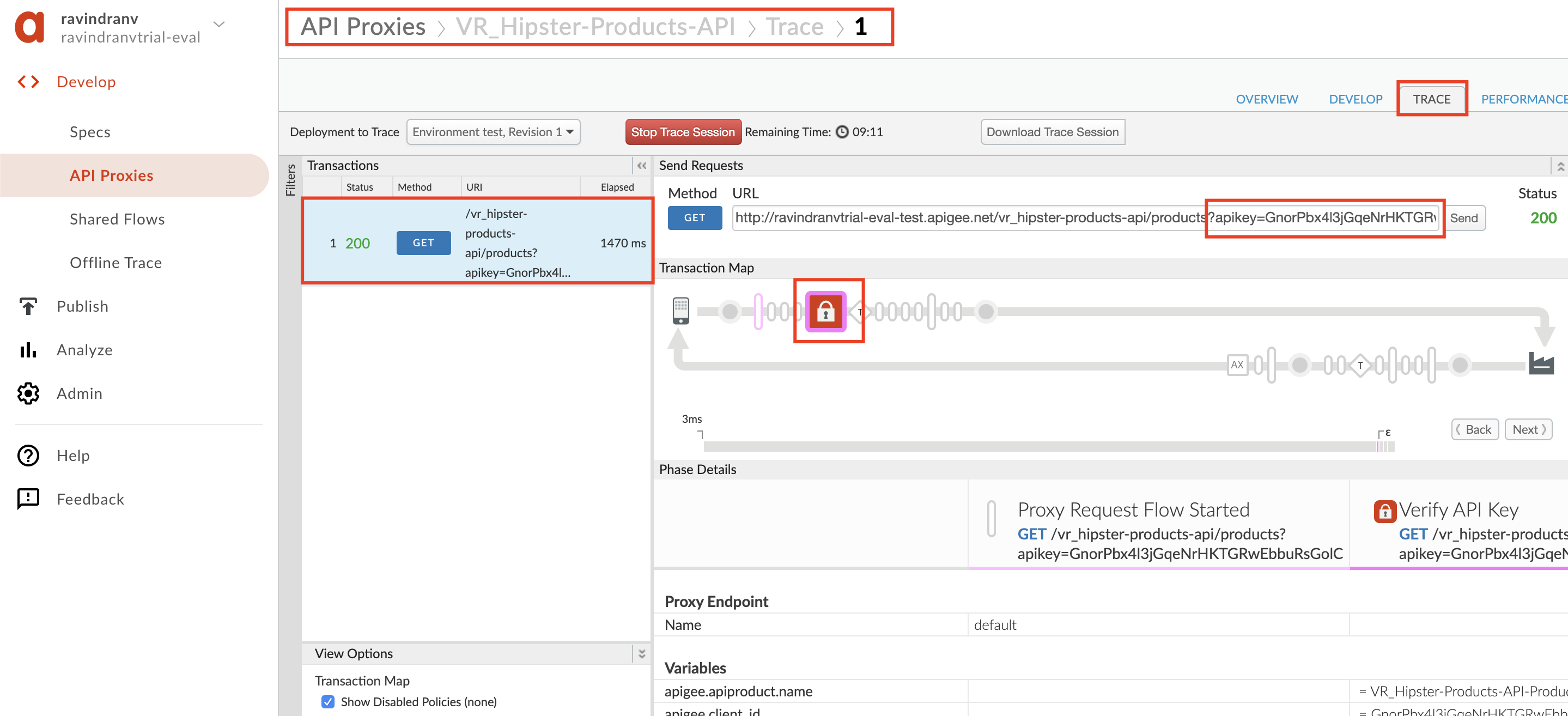

  2. Add the /products resource path to the URL prior to sending a sample API call request. In addition, add a query parameter called apikey with the value of the API Key you copied. Click Send to send a request.

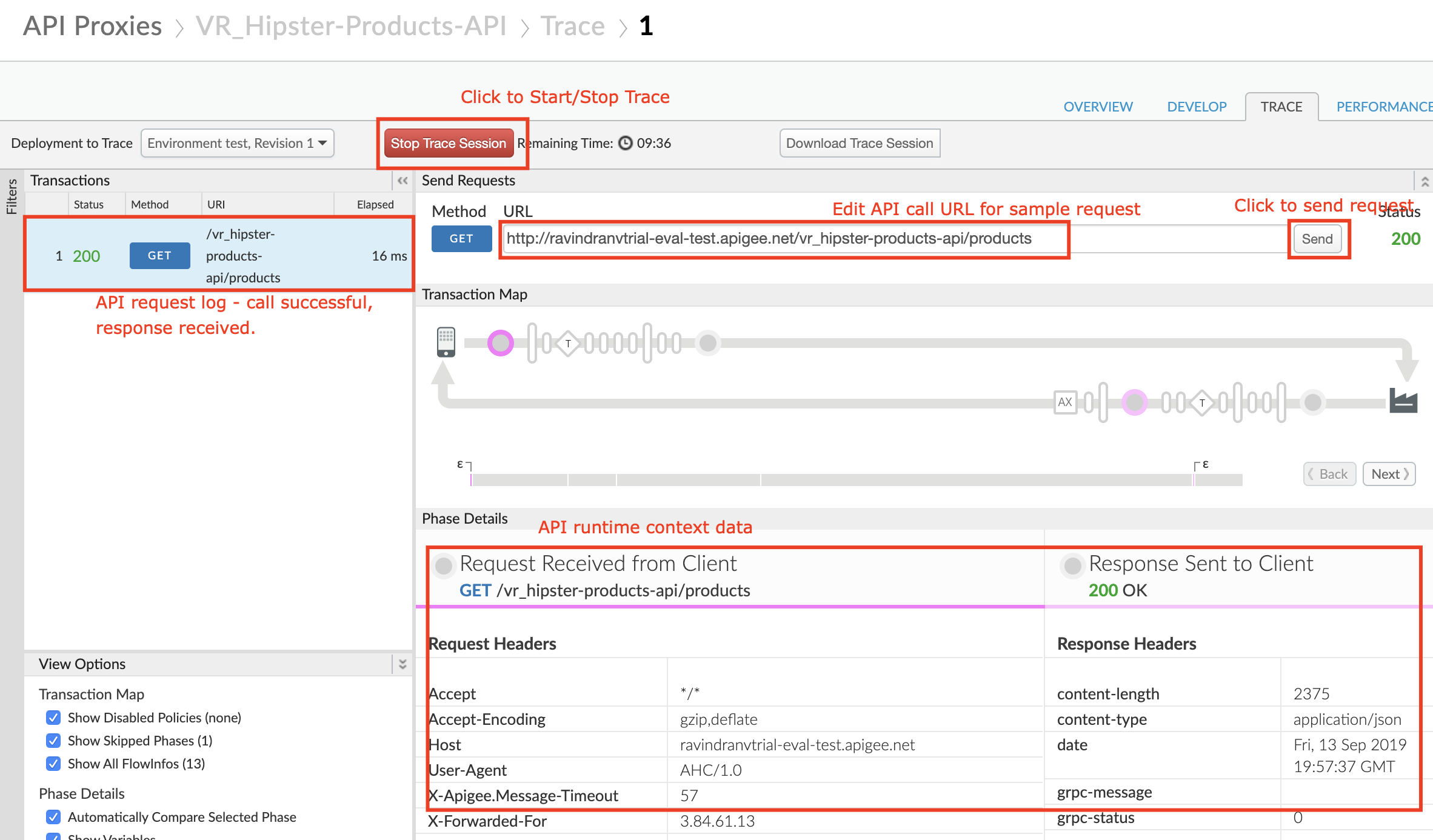

  3. You should now see that the API request returns a 200 OK response, as the Verify API Key policy has found the API key to be valid.

image alt text

Lab Video

If you would rather watch a video that covers this topic, point your browser here.

Quiz

  1. Why is the Verify API Key policy typically found as the first policy in the Request PreFlow? When might it be in a conditional PreFlow instead of the “All” PreFlow?

  2. How would you configure the policy to get the API Key from a header called “Api-Key” instead of the default query parameter location?

Summary

In this lab you learned how the relationship between API Proxies, API Products and Apps, helps obfuscate API production from API consumption; and how to protect your API proxy using the Verify API Key policy. You then implemented the policy and tested it using the built-in Trace Tool.
